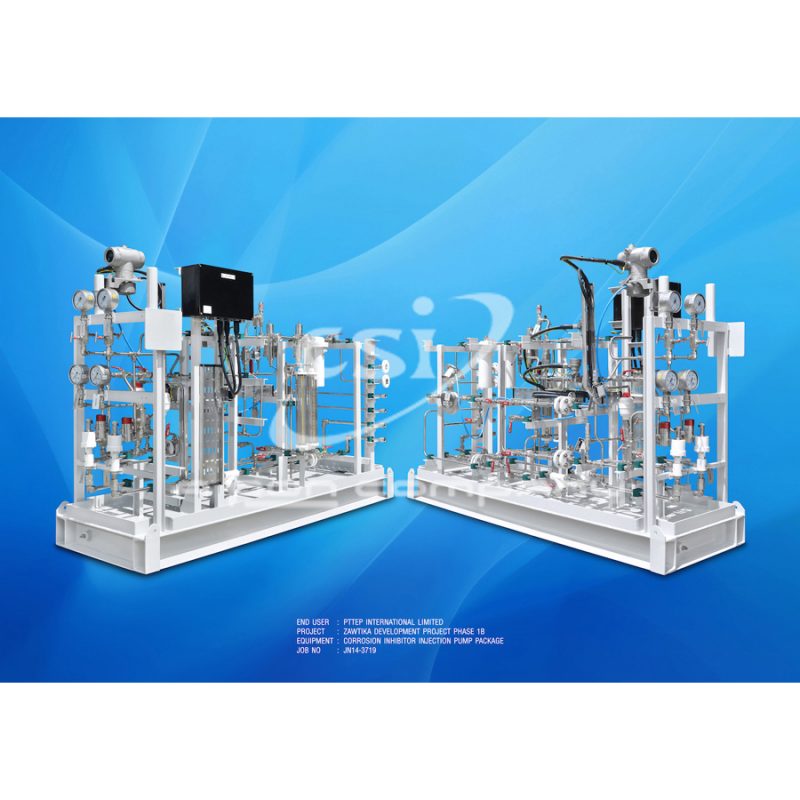

微信打开CSI offers Chemical Injection Package that range from single stage pump package to multi-point injection system be it electrical, air or gas driven. Features includes local or remote operation. Local or remote alarms with option or variable speed or stroke control to vary injection or closing rate in proportion to the main flow stream. The pumps and compartment tanks in stainless steel or other materials can be installed in a single skid fitted with level transmitters, alarms and other monitoring devices.
The package are designed and built in accordance with the applicable industry standards including ANSI, API, ASME and IEC.
All packages are tested to client’s requirements before being released for shipment.
IRCD (Individual Rate Control Devices)
The IRCD is a unique for multi-injection of chemicals into Oil & Gas production systems. It can be supplied as individual units or in a panel configuration. They require high pressure feed like from either an air or electric driven chemical injection pump. CSI’s IRCD is capable of handling flow rates as low as 20ml per hour and up to 5000 LPH with injection pressures up to 15,000 PSI.
INDUSTRY STANDARDS:
- Vessels Code Stamped ASME section Vlll & National Board Registered.
- Single or compartmental tanks API 650/ Roark’s formula.
- Piping designed to ANSI b31.1/ANSI b31.3
- Pipe fabrication to ASME section lX
- Structural steel assembly designed to AWS D1.1
STANDARD FEATURES CHEMICAL INJECTION PACKAGES:
MULTI-POINT INJECTION OF CHEMICAL BY:
- Individual Metering Pumps
- Multi Headed Metering Pumps
- Injection Rate Control Devices (IRCD) with metering pump or fixed Stroke Pump
API 675 METERING PUMPS & API 674 RECIPROCATING PUMPS WITH:
- Packed Plunger Fluid End
- Single Diaphragm Fluid End
- Double Diaphragm fluid end with leak detection
RECIPROCATION PUMPS WITH:
- Packed Plunger Fluid End
- Single Diaphragm Fluid End
ELECTRIC MOTOR OR GAS/ AIR DRIVEN PUMPS
INSTRUMENTATION WITH HART OR FIELDBUS COMMUNICATION
MATERIALS OF CONSTRUCTION:
- Carbon Steel
- 316SS
- Alloy 20
- Non Metallic (PVC, Fibre Glass)
COMPLETE FUNCTION TEST
OPTIONAL FEATURES:
- Rack Mounted Bulkhead Controls for Ease in operator Interface
- NEMA or IEC Rated Enclosures and Components for Class 1.Div or Div. 2 Hazardous Areas, Zone1 or Zone2 to ATEX Directives.
- PLC Control System with Data Highway
- IEC/UL/CSA Listed Control Panel Assembly
- Class 1, Div. 2 Hazardous Locations
- Third Party Inspection by ABS, Lloyd’s and DNV Structural Analysis
- Installation/Training/Start-up Supervision
