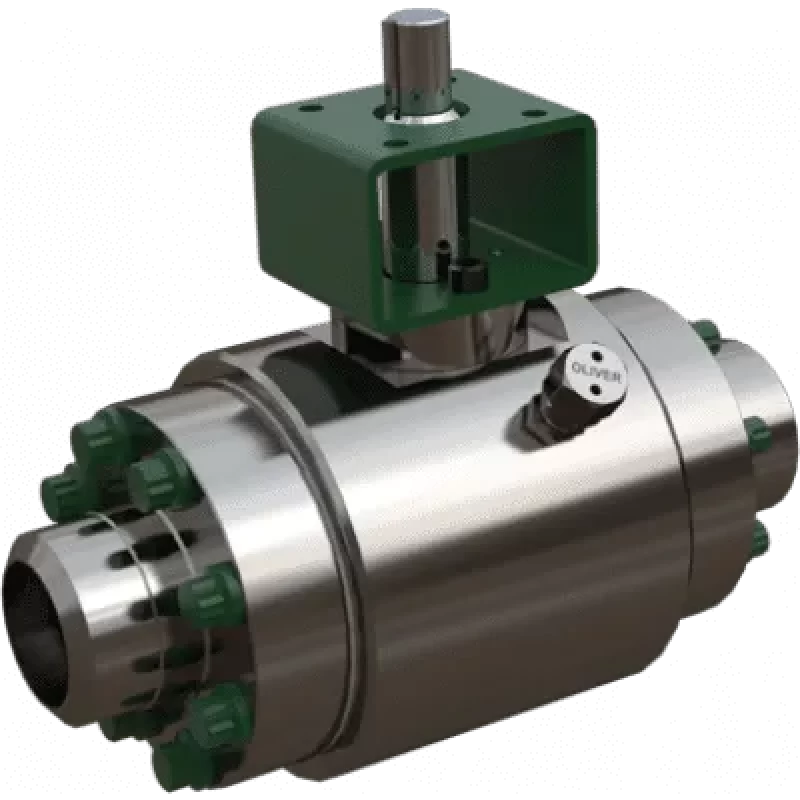

微信打开Oliver Twinsafe provides Compact Style Ball Valves that are designed to provide considerable space and weight savings when compared to a traditional flanged end ball valve.
Thanks to our high-integrity design, we have supplied valve solutions to global customers for many years, custom-built to their individual requirements. Compact Ball valves have proven their worth in many applications.
Available in both floating and trunnion ball designs, the valve utilises Oliver’s proven ball valve technology and can be supplied with either manual or automated actuation. Oliver Twinsafe works with customers globally to engineer and manufacture precision Compact Single Valves.
Compact Ball Valve Specifications:
Design Standards: API6D Standard, ASME VIII DIV2, NACE MR-01-75
End Connections: Buttweld profile to ASME B16.25
Operator: ISO 5211 F10 interface for actuator.
Body and Trim Material: Alloy Steel, Stainless Steel, Duplex Steel or Nickel Alloys.
Seat Insert Material: PEEK.
Stem Material: Stainless Steel, Duplex Steel or Nickel Alloys.
Stem Seal Materials: PTFE lip seal with elgiloy spring.
Fire Safe Seals Material: Graphite.
Body Seal Materials: FKM or HNBR O-rings with PTFE back-up rings.
Split Ring Material: AISI 4130 alloy steel Xylan coated.
Working Temperature: -50 to +400 deg F (-46 to +200 deg C).
