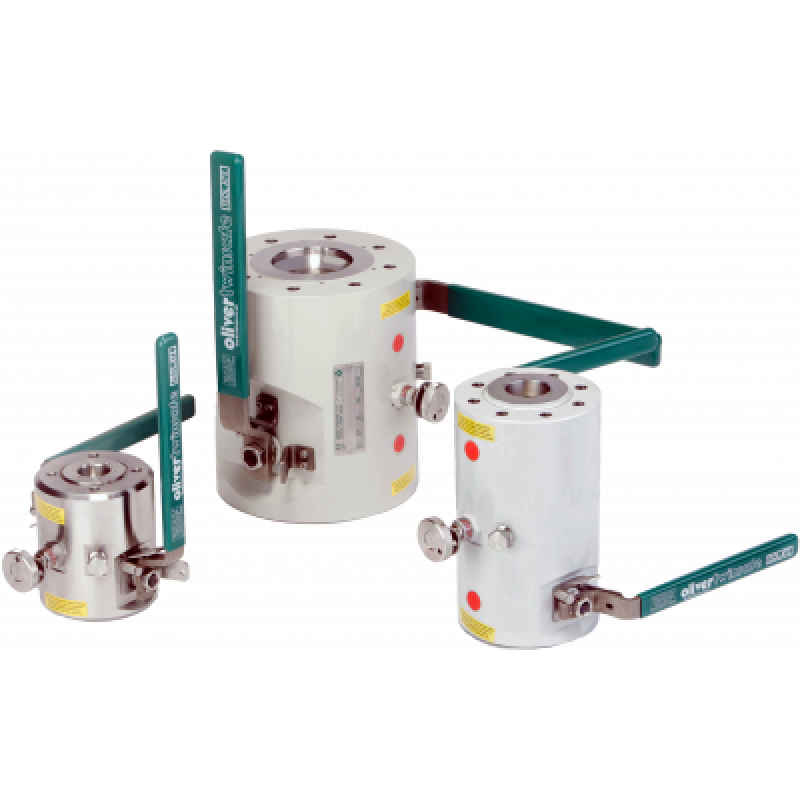

微信打开Our compact style Double Block & Bleed Valves are designed with an overall length in accordance with ASME B16:10. The single piece body design reduces potential leak paths and allows weight and space to be kept to a minimum. Available with both full and reduced bore sizes.
Various other bleed valve options are available and we can work with our customers to adopt a technical project focused approach to ensure complete compatibility.
Floating Ball Valve DBB Compact Design Specifications:
Design Standards: ASME B16.34, API 6D, ASME VIII, ASME B16.5
Firesafe Standards: API 607, API6FA, ISO 10497
Pressure Rating: ASME Class 150 to 2500, API 6A up to 5,000 API
Seat Materials: Soft Seats: PEEK, PTFE & Metal Seats: Tungsten Carbide and Chrome Carbide
Temperature Range: -50 deg c to 240 deg C
